2100mm of freezer, fryer and till.

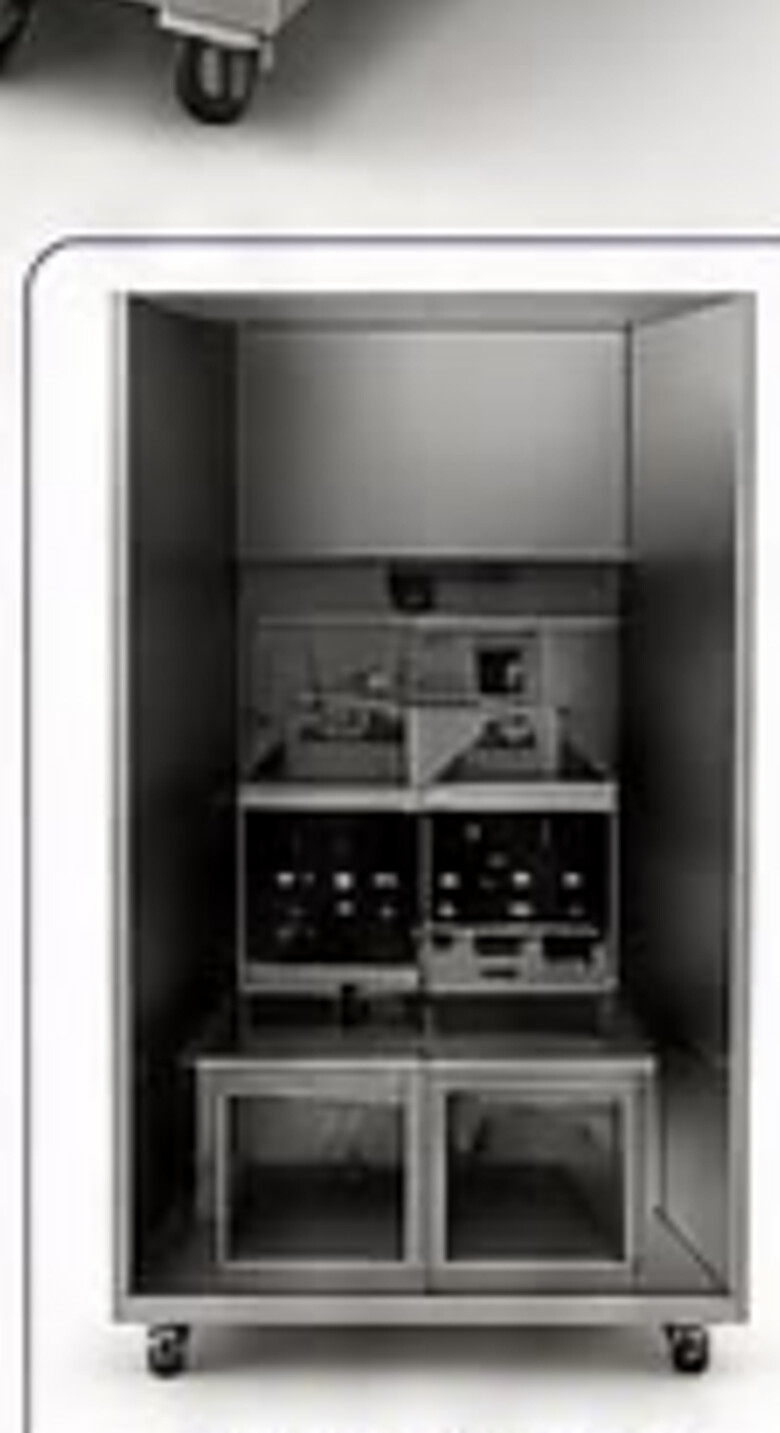

Four views and the full specification. Nothing here is rounded up.

2100mmHeight

1950mmWidth

900mmDepth

Specification

The whole build sheet, nothing hidden.

Every part of the machine, exactly as it is specified. If you are placing one in your space, this is what arrives.

Gastro Eatz · 5-in-1 hot fry vending machine 30 line items

Sizes below are component dimensions. The cabinet itself is 2100 × 1950 × 900mm.

2 light boxes on the top of the cabinet2 pcs

Front door of the freezer cabinet1 set

32-inch order menu LCD touch screen (vertical)Android system1 set

Food material storage freezer1108*990*1990 mm1 set

Built-in insulated door of the freezer1 set

Fixed layer rack for food materials1 set

Food storage stainless steel containers (five varieties)R300*L500mm5pcs*12KG

Mechanical arm for receiving, transferring, weighing and transporting ingredients1 set

Intelligent cooking, purification, serving and electric control integrated cabinet1 set

Front cabinet door of the integrated cabinet1 set

21.5-inch number display and take-out screenPlayer1 set

Ingredient transfer and distribution hopper1 set

Three-position 1800W electric frying pan3.5 liters/set3 sets

Real-time oil temperature detection sensor3 sets

Mechanical temperature adjustment and temperature limit controller1 set

Electric flipping frying basket3 sets

Finished ingredients filling hopper1 set

Ingredient residue storage box2 sets

Automatic oil replenishment system for frying1 set

Manual frying oil filtration vehicle1 set

A dispenser for 100 paper cupsUpper R98, Lower L100, H61mm1 set

Cup receiving and pushing outtake mechanism1 set

Outtake detection and ingredient taking-out mechanism1 set

Storage and shipping tray for boxed sauces and powder materials3 layers*2 parts120 boxes

Boxed sauce and powder conveying slide1 set

Smoke purification portion system1 set

PLC electric control system1 set

4G network moduleEC201 set

VISA Card ReaderNAYAX1 set

Wooden case packingMade of 9mm thick nailed wood board1 set

Send us the space and we’ll tell you what it needs: power, footprint, servicing.
