Hot sweet potato fries,cooked by the machine.

The 5-in-1 hot fry vending machine. Five varieties, fried on demand from real sweet potatoes.

Place a machine

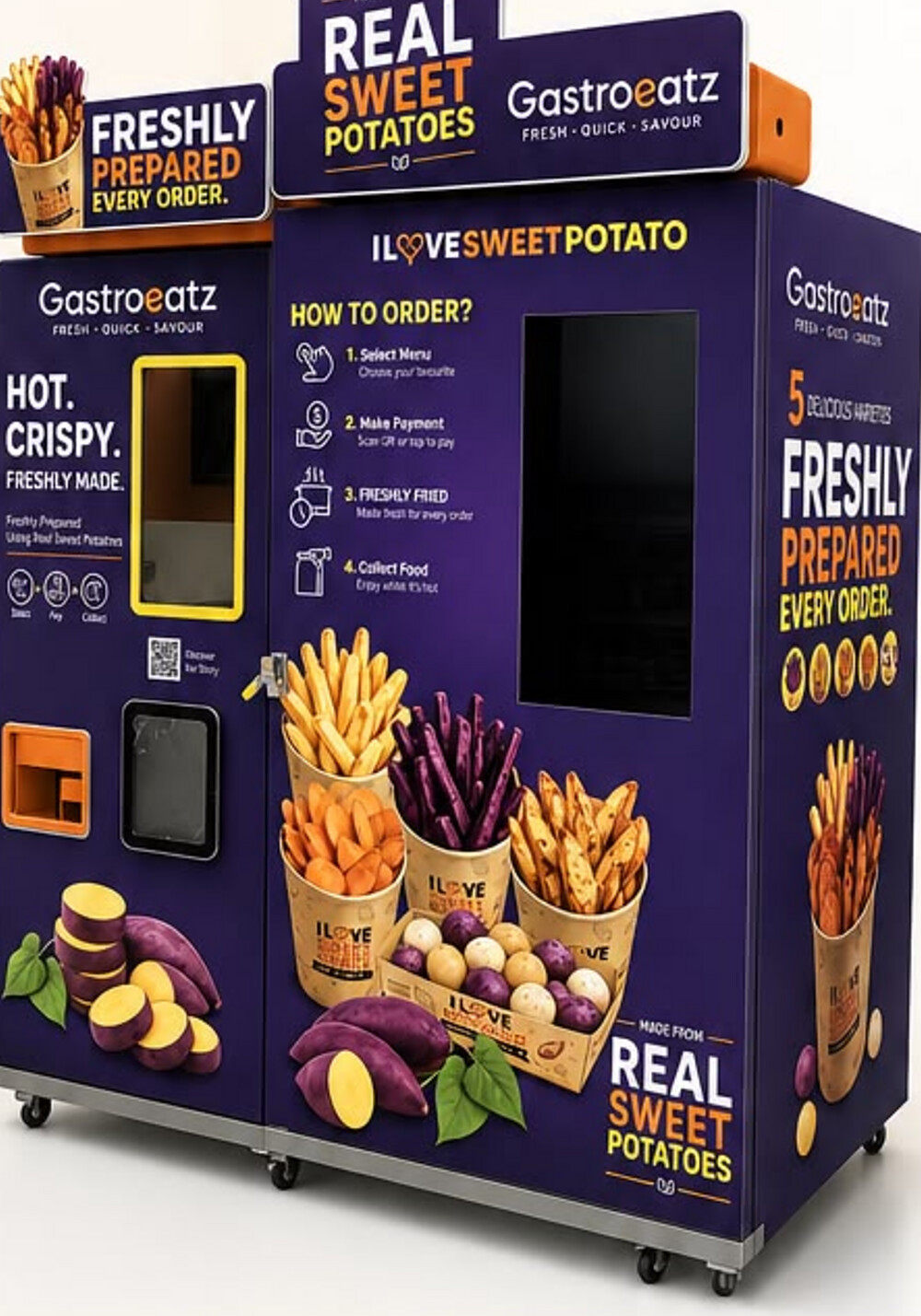

The Gastro Eatz 5-in-1 hot fry vending machine

The machine

One cabinet. A freezer, a fryer and a cashier.

A 32-inch vertical touch menu on the front, a food freezer and a full cooking cabinet behind it. It takes the order, fries it, fills a cup and hands it over, on its own.

2100mmCabinet height
5Varieties held
3×1800WFrying pans

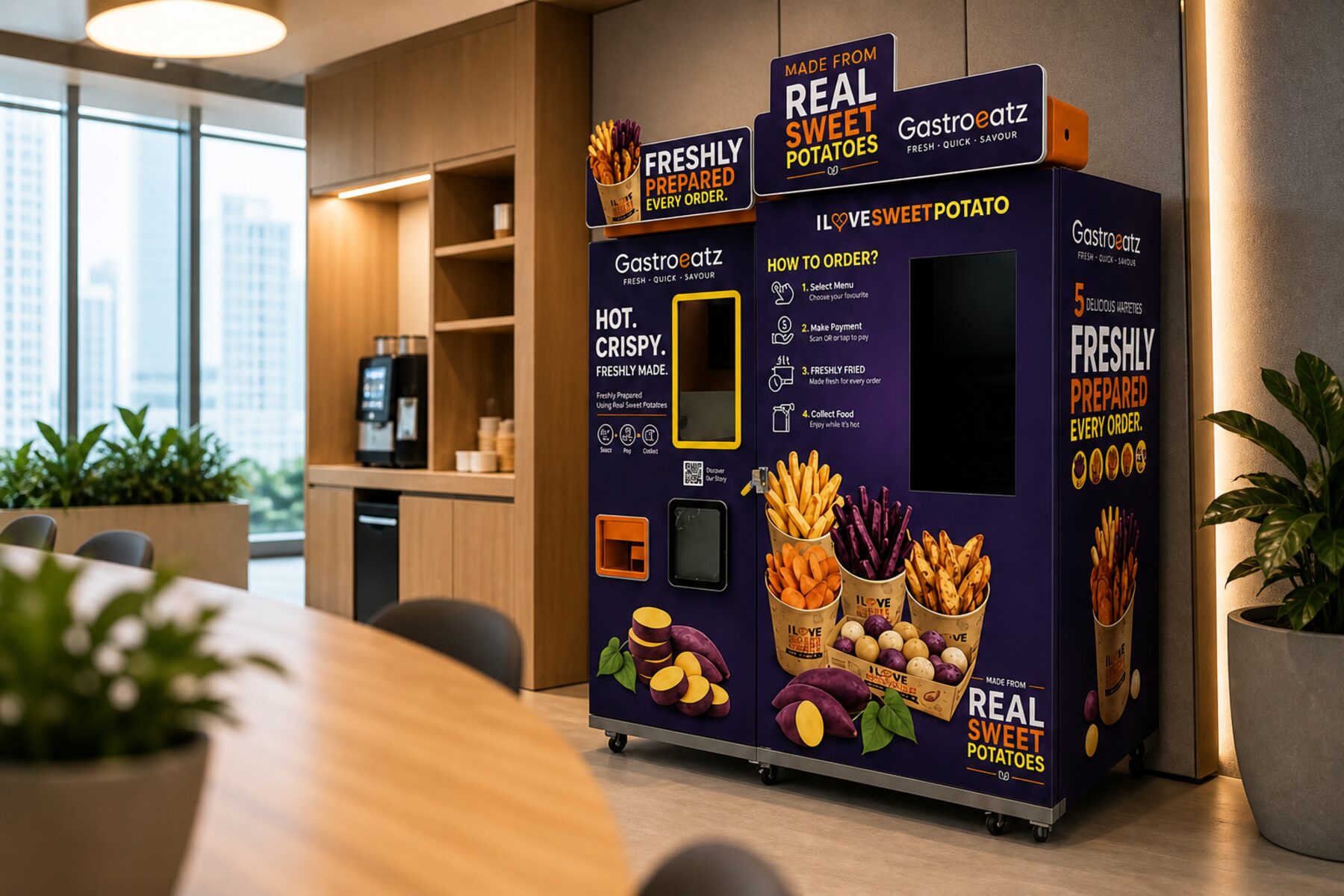

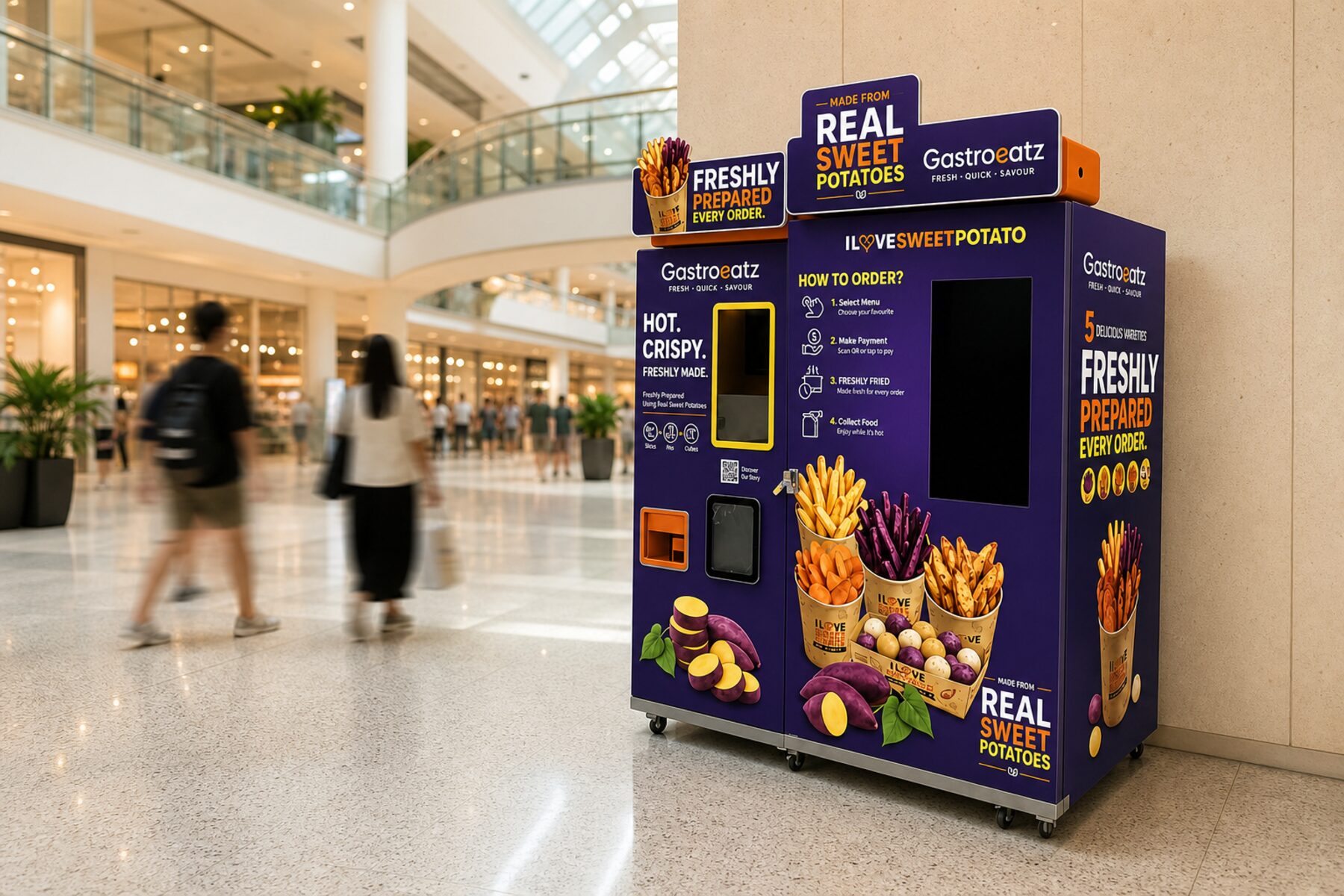

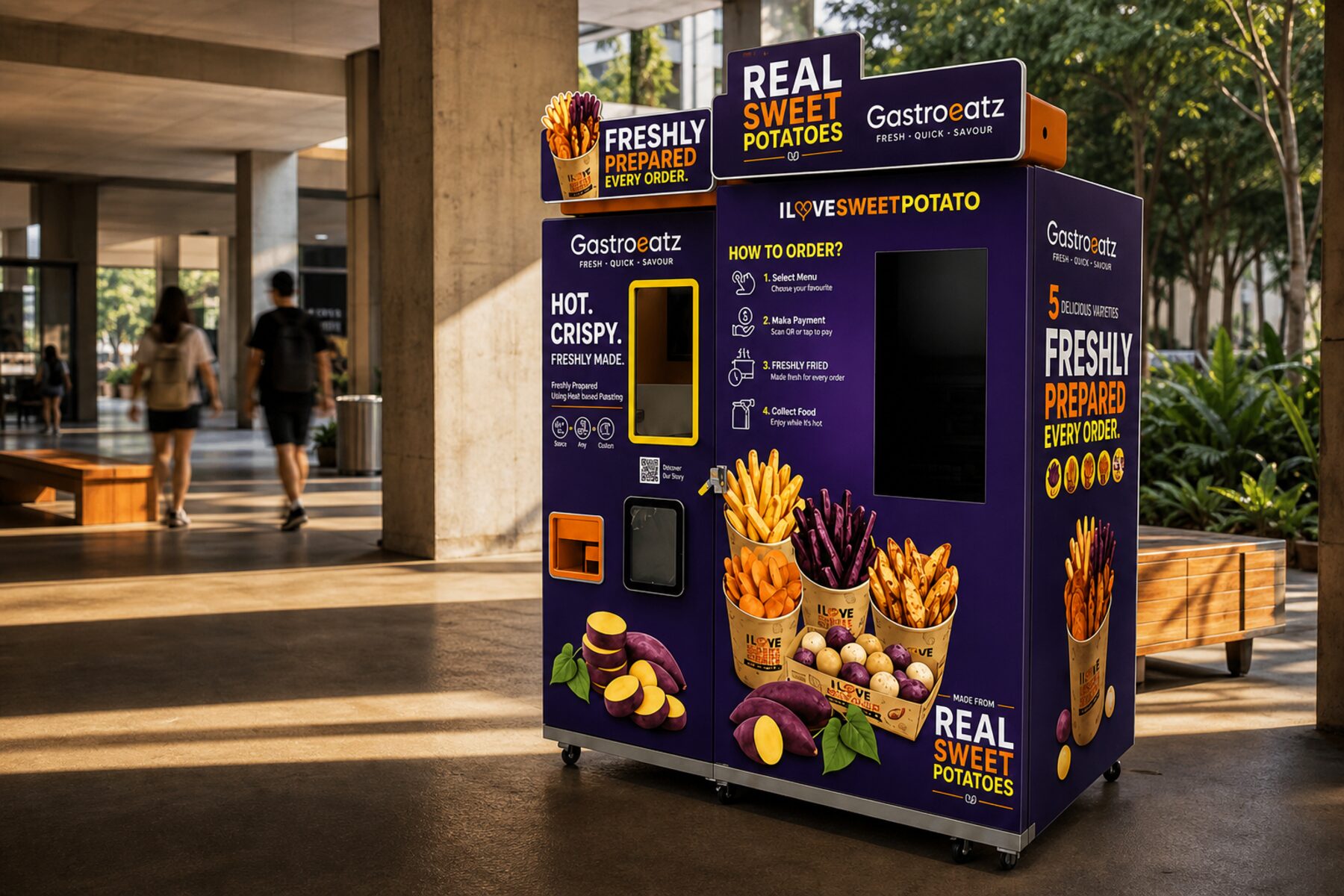

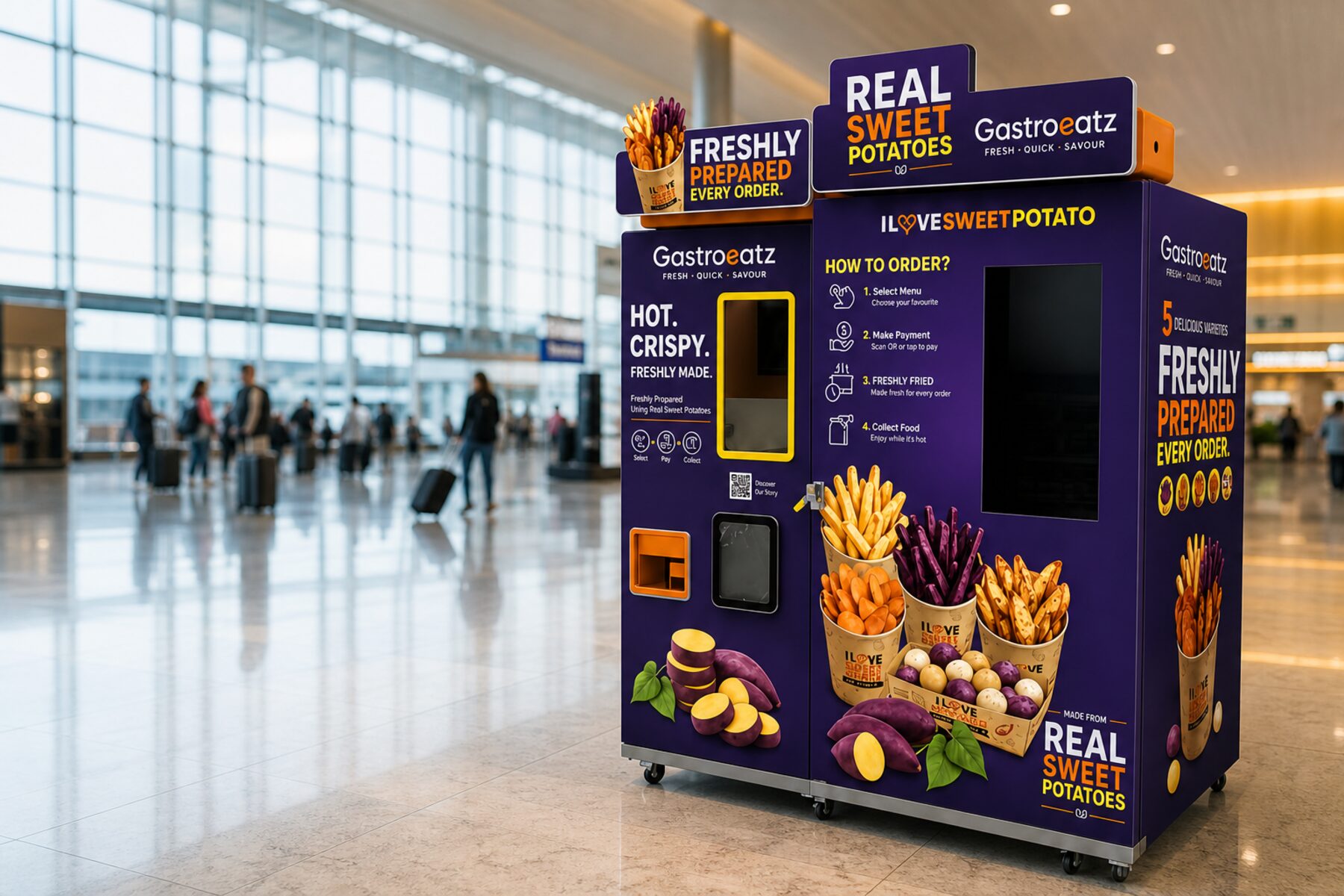

A Gastro Eatz vending machine in a shopping mall atriumA Gastro Eatz vending machine on a university campus concourseA Gastro Eatz vending machine in an airport departure hallA Gastro Eatz vending machine in a modern office pantry

Where it goes

Shopping malls

Atrium footfall, seven days a week.

See what a site needs

The signature

Order one. Watch it fry.

This is the machine's own screen, running its own four steps. Pick a variety.

Gastro Eatz · 32″ menuONLINE

Select your menu

Make payment

Tap card · NAYAX



Cooking

8s

Frying from frozen

Collect your food

Fries

Ready · take from the hatch

  1. 01
    Select menu

    Five varieties on a 32-inch vertical touch screen.

  2. 02
    Make payment

    Cashless, through the built-in VISA card reader.

  3. 03
    Wait for cooking

    The machine fries the order from frozen, fresh.

  4. 04
    Collect food

    A paper cup is dispensed, filled and pushed out.

All five varieties

Why it works

Fresh, quick, savour. In that order.

  • 01

    Real sweet potatoes, not a frozen brick

    Made from real sweet potatoes. Five varieties are held in stainless steel containers inside the machine's own freezer, then cooked when someone orders.

  • 02

    It fries on demand, not in advance

    Three 1800W frying pans, 3.5 litres each, with real-time oil temperature sensors and electric flipping baskets. Nothing sits under a heat lamp.

  • 03

    No cook, no cashier, no hood

    Fully automated from cooking to serving. A mechanical arm receives, weighs and transfers the ingredients; a PLC control system runs the sequence.

  • 04

    You see it from anywhere

    Cashless payment through a NAYAX card reader and a 4G module, so sales and stock report back without anyone visiting the machine.

Specification

The whole build sheet, nothing hidden.

Every part of the machine, exactly as it is specified. If you are placing one in your space, this is what arrives.

Gastro Eatz · 5-in-1 hot fry vending machine 30 line items

Sizes below are component dimensions. The cabinet itself is 2100 × 1950 × 900mm.

2 light boxes on the top of the cabinet2 pcs
Front door of the freezer cabinet1 set
32-inch order menu LCD touch screen (vertical)Android system1 set
Food material storage freezer1108*990*1990 mm1 set
Built-in insulated door of the freezer1 set
Fixed layer rack for food materials1 set
Food storage stainless steel containers (five varieties)R300*L500mm5pcs*12KG
Mechanical arm for receiving, transferring, weighing and transporting ingredients1 set
Intelligent cooking, purification, serving and electric control integrated cabinet1 set
Front cabinet door of the integrated cabinet1 set
21.5-inch number display and take-out screenPlayer1 set
Ingredient transfer and distribution hopper1 set
Three-position 1800W electric frying pan3.5 liters/set3 sets
Real-time oil temperature detection sensor3 sets
Mechanical temperature adjustment and temperature limit controller1 set
Electric flipping frying basket3 sets
Finished ingredients filling hopper1 set
Ingredient residue storage box2 sets
Automatic oil replenishment system for frying1 set
Manual frying oil filtration vehicle1 set
A dispenser for 100 paper cupsUpper R98, Lower L100, H61mm1 set
Cup receiving and pushing outtake mechanism1 set
Outtake detection and ingredient taking-out mechanism1 set
Storage and shipping tray for boxed sauces and powder materials3 layers*2 parts120 boxes
Boxed sauce and powder conveying slide1 set
Smoke purification portion system1 set
PLC electric control system1 set
4G network moduleEC201 set
VISA Card ReaderNAYAX1 set
Wooden case packingMade of 9mm thick nailed wood board1 set

Full machine detail

Let’s bring the sweet potato experience to more places.

Tell us about the space. A mall atrium, a campus block, an office floor. We’ll come back with what it takes to put a machine in it.
